  Specifications:



  Name: CX-25B Blade Angle Forming Machine Minimum round diameter of processing blade: 10mm Minimum angle of processing blade: 65 degrees Minimum arc radius of processing blade: 2.5mm Dimensions: 900 * 640 * 260mm Color: green, blue (random) Packing size: 100 * 30 * 40cm Weight: 35kg   Features  1.Blade forming machine is a supporting equipment for flat die cutting plate making. 2. The blade forming machine is mainly used for making various arcs and angles of die cutters and creasing lines. It is easy to operate, has a high degree of forming, and has good work quality.   Moving mode: A: R0.75, B: R2, C: R2.5, D: R3.5, E: R4, F: R5, G: R5.75, H: R6.5, I: R7.5 , J: R8, K: R9, L: R10.5, M: R12, N: R13.5, O: R15 Fixed mold: A: 60 degrees ,B: R1 ,P: R1 ,C: R1.5 ,Q: R1.5 ,D: R2.5 ,E: R3 ,F: R4 ,G: 4.75 ,R: Diameter 5 , S: Diameter 6 ,T: Diameter 8 , U : Diameter 9.5  H: Diameter 11, I: Diameter 12.5, J: Diameter 14, K: Diameter 16, L: Diameter 19, M: Diameter 22, N: Diameter 25

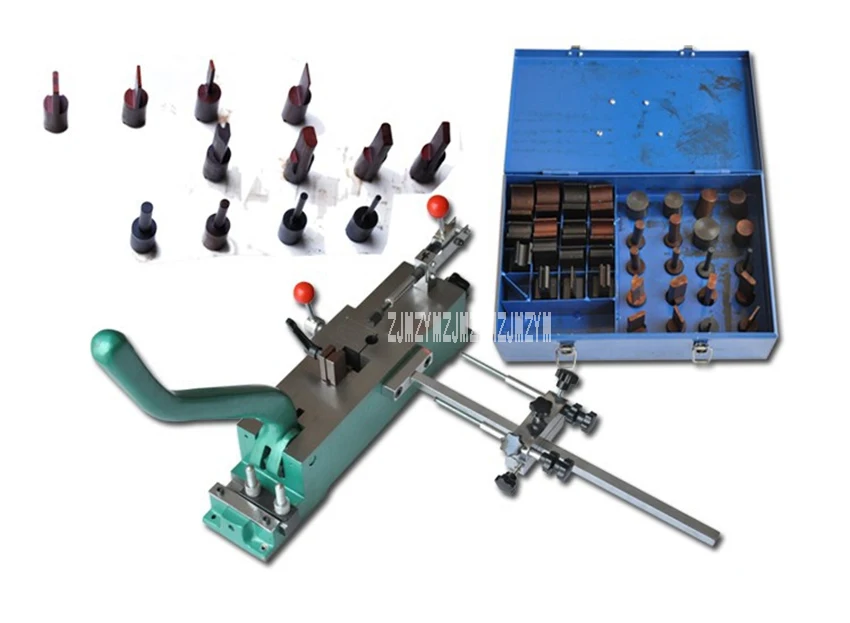

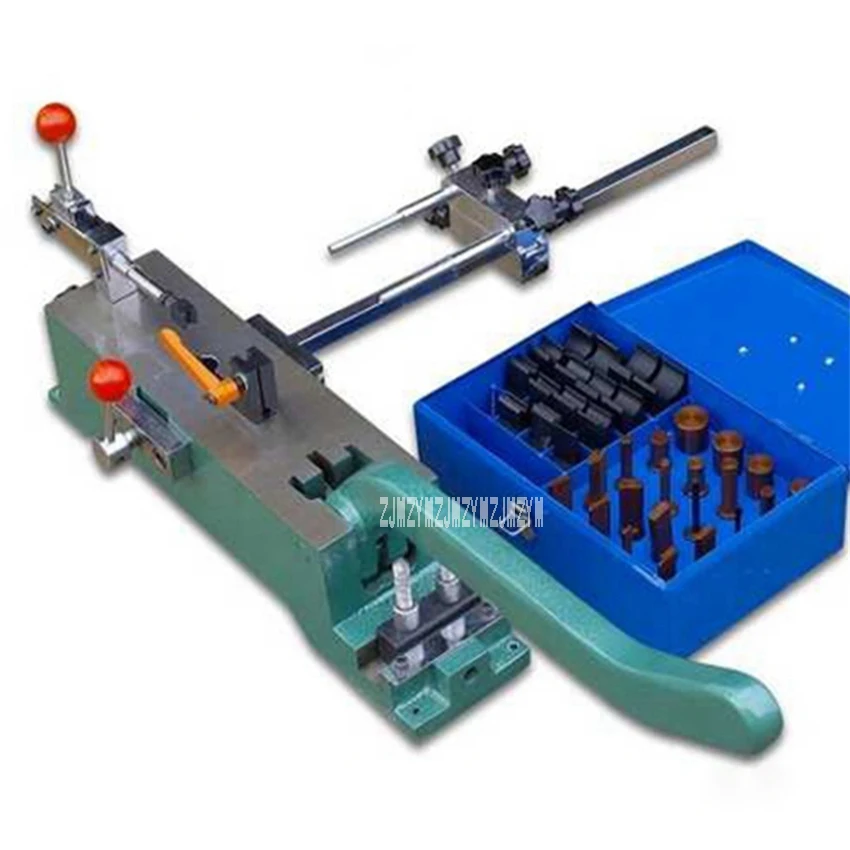

  Picture showing:
