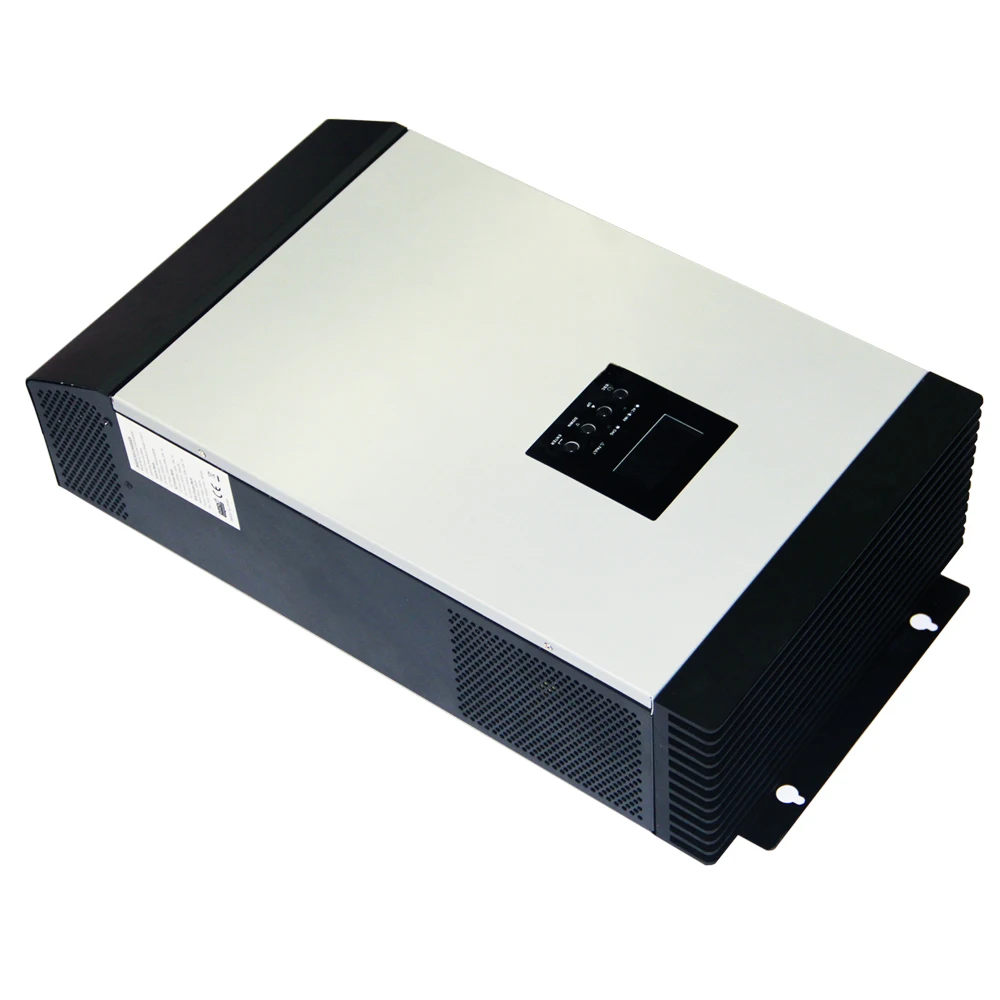

Description5000VA 4000W Pure Sine Wave Hybrid Inverter Parallel Kit Inside 48VDC Input 220VAC Output with MPPT Solar Charger Controller 80AThis is multi-function inverter/charger ,combining functions of inverter,MPPT solar charger and battery charger to offer uninterruptible power support with portable size .Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current .AC/Solar charger priority ,and acceptable input voltage based on different applications
Battery Connection
Model
Typical Amperage
Battery Capacity
Wire Size
Ring Terminal
Torque value
Cable mm2
Dimensions
D(mm)
L(mm)
5KVA
87A
200AH
1*4 AWG
22
6.4
33.20
2~3 Nm
2*8 AWG
14
6.4
29.20
AC Input/Output Connection
Model
AC Breaker
Gauge
Torque value
5KVA
50A
8 AWG
1.4~1.6 Nm
PV Connection
Model
Typical Amperage
Cable Size
Torque value
5KVA
60A
8 AWG
1.4~1.6 Nm
PV Module Selection
Maximum Power(Pmax)
260W
Max.PV module numbers in series
Max. Power Voltage Vmpp(V)
30.9V
3: 30.9x3=60~115
Max.Power Current Impp(A)
8.42A
PV module numbers in parallel
Open Circuit Voltage Voc(V)
37.7V
9: 80A/8.42
Short Circuit Current Isc(A)
8.89A
Total PV module numbers:3x9=27
Maximum PV module numbers in Series : 3
PV module numbers in parallel : 9
Total PV module numbers :3x9=27
There is one parallel kit inside each inverter,if you want to put two inverters in parallel , you need to buy two pieces this model
if you want to put three inverters in parallel , you need to buy three pieces !
Pure sine wave inverter
Built-in MPPT solar charge controller
Selectable input voltage range and frequency according to city power in your country
Charging current is setable according to your battery type
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart charging system optimizes battery performance
Cold start function
Parallelable up to 4 units which available on MPS4K/5K only
The following illustration sgiws basic application for this inverter/charger .It also includes following devices to have a complete running system :
Generator or Utility
PV modules (Option)
Consult with your system intergrator for other possible system architectures depending on your requirements .This invertert can power all kinds of applicances in home or office environment ,including motor-type applicances sucha as tube light ,fan,refrigenrator and air conditioner
Note:For Parallel model installation and operation ,please check separate paralllel installel installation guide for the details
1 LCD display
2.Status indicator
3.Charging indicator
4.Fault indicator
5.Function buttons
6.Power on/off swtich
7.AC input
8.AC output
9.PV input
10.Battery input
11. Circuit Breaker
12. RS232 communication port
13.Parallel communication cable (only for parallel model)
14.Current sharing cable (only for parallel model)
15.Dry Contact
The unit x 1
User Manual(English) x 1
Communication cable x 1
Software CD x 1
MPPT charge controller with large transformer coil inside.
