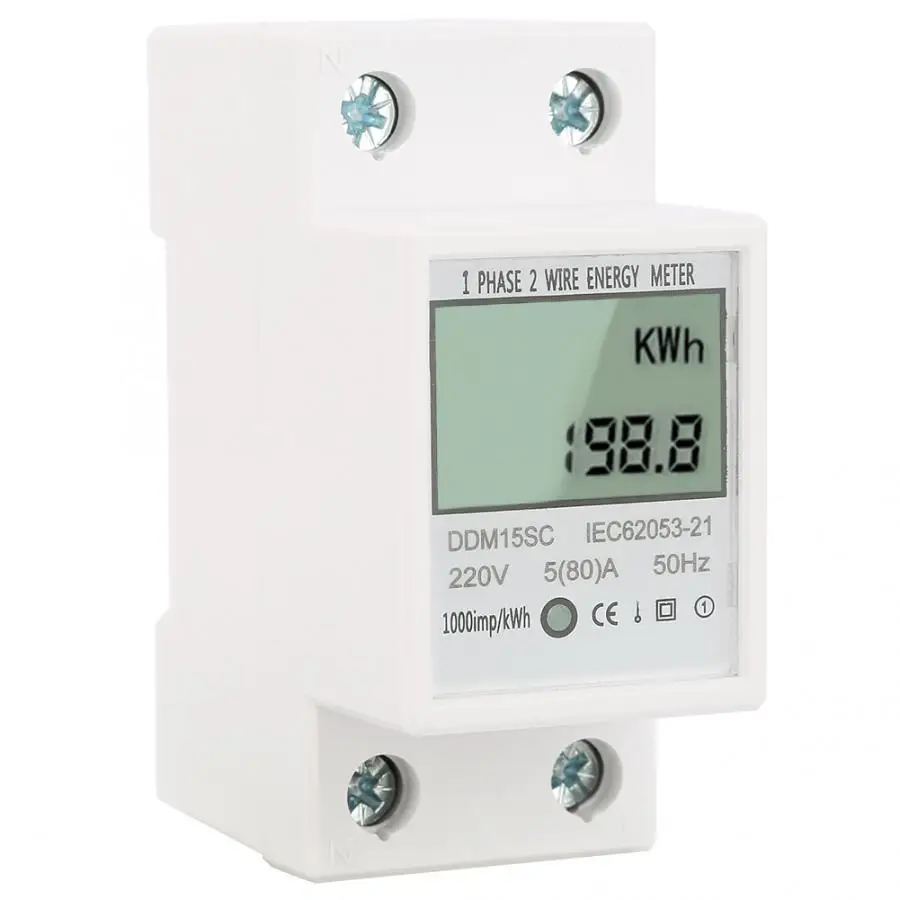

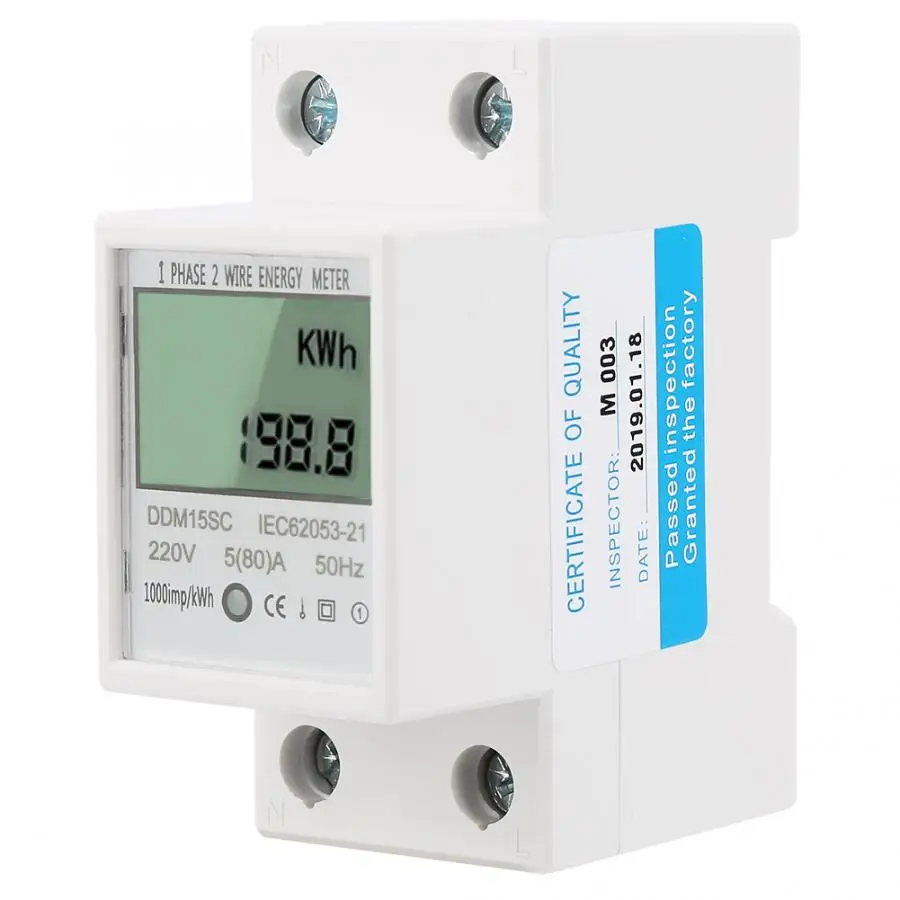

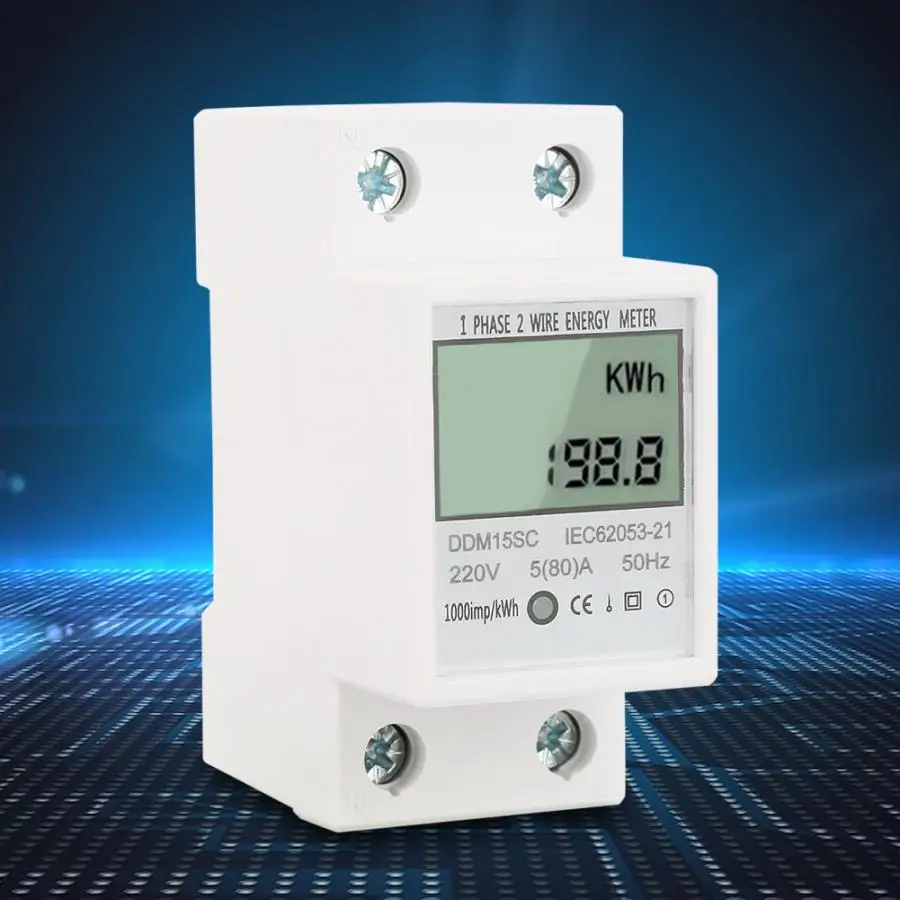

5-80A DDM15SC LCD Digital Display Single Phase DIN-Rail Electronic Energy KWh Meter

Features:
1. 35mm DIN Rail mounting meets the standards of DIN EN50022.
2. 17.5mm pole width meets the standards of DIN43880.
3. LCD digital display, no reset button, to avoid human manipulation with the data.
4. It displays electricity, voltage, current, frequency and power.
5. Red LED energy pulse signal.
6. Embedded end cover, ensuring power supply safety.
7. With the features of good reliability, small size, light weight, beautiful appearance and easy installation.
8. Adopt microelectronics and digital processing technology to measure electric energy, accurate and reliable.
9. Large scale integrated circuits and accuracy SMT technology, with good electromagnetic interference resistance and stable performance.

Specification:
Material: Plastic
Model: DDM15SC
Accuracy: First Grade
Reference Voltage: 220V/230V  50/60Hz
Reference Current (. Current): 5(80)A
Insulating Property: 1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse Voltage
Display: LCD Digital Display
Installation: 35mm DIN Rail

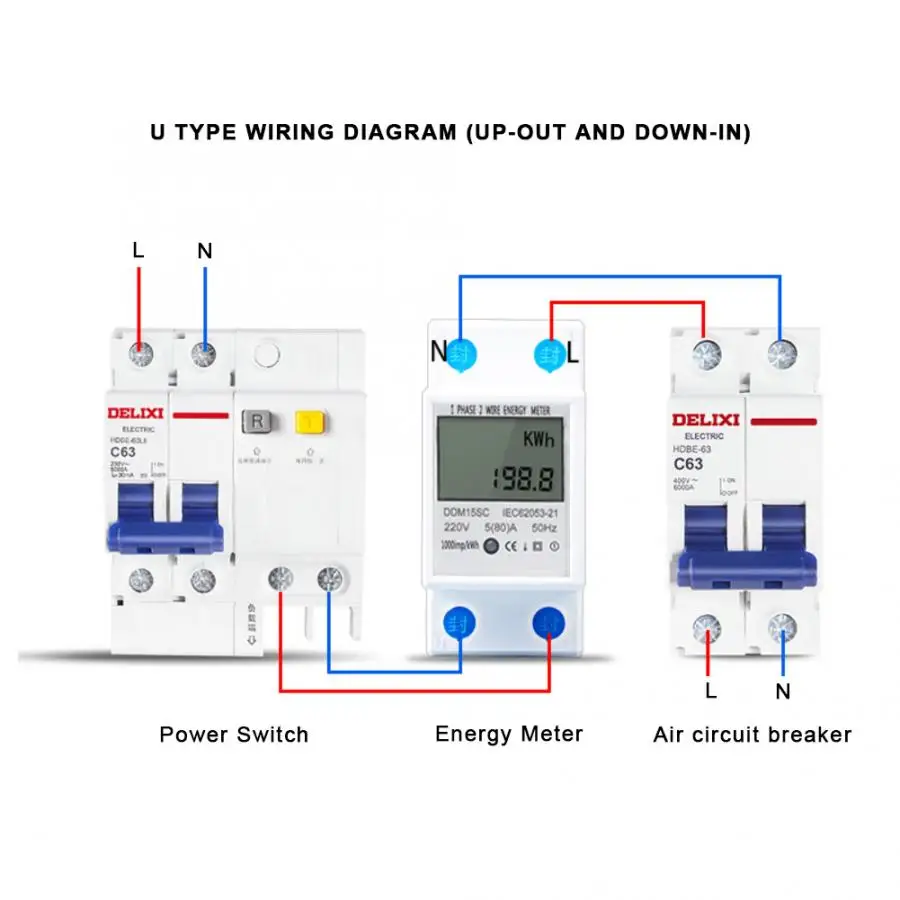

Wiring Method: Up-out and down-in/up-in and down-out
Pole Width: 17.5mm/0.7in
Functions: Display electricity, voltage, current, frequency, power factors

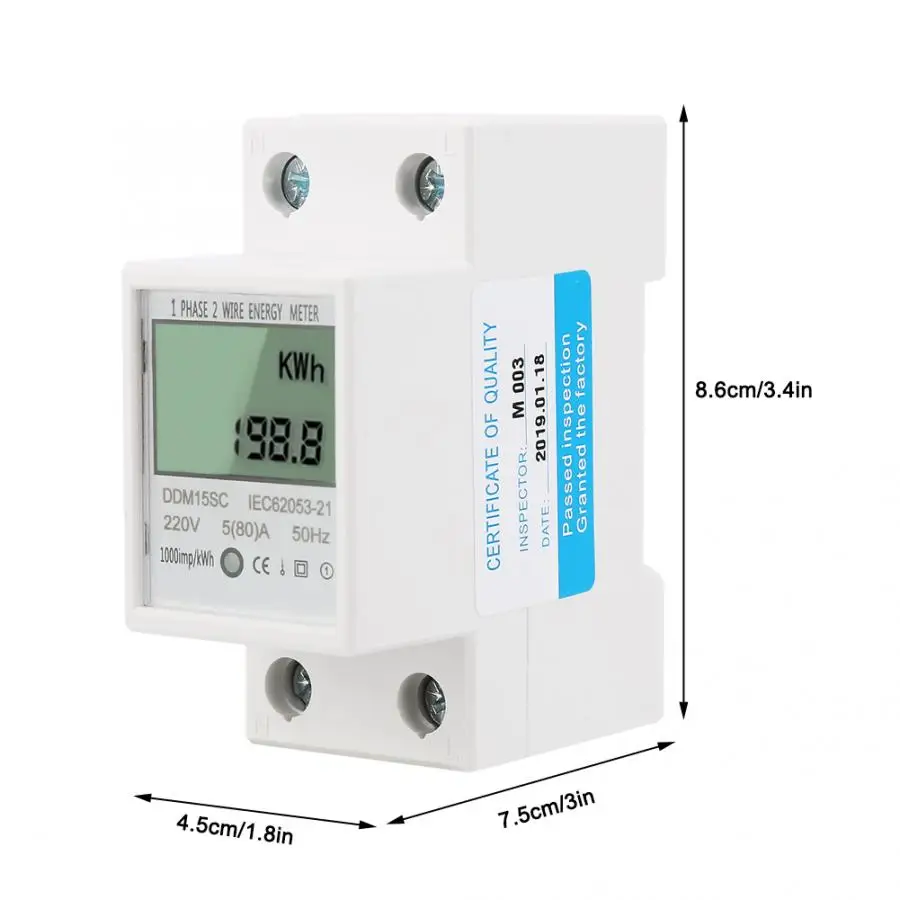

Package Size: Approx. 8.6 * 7.5 * 4.5cm/3.4 * 3 * 1.8in
Weight: Approx. 125g

Package list:
1 * Energy Meter
