HF QRP Transceiver,put battery 12v and ANT can qso.

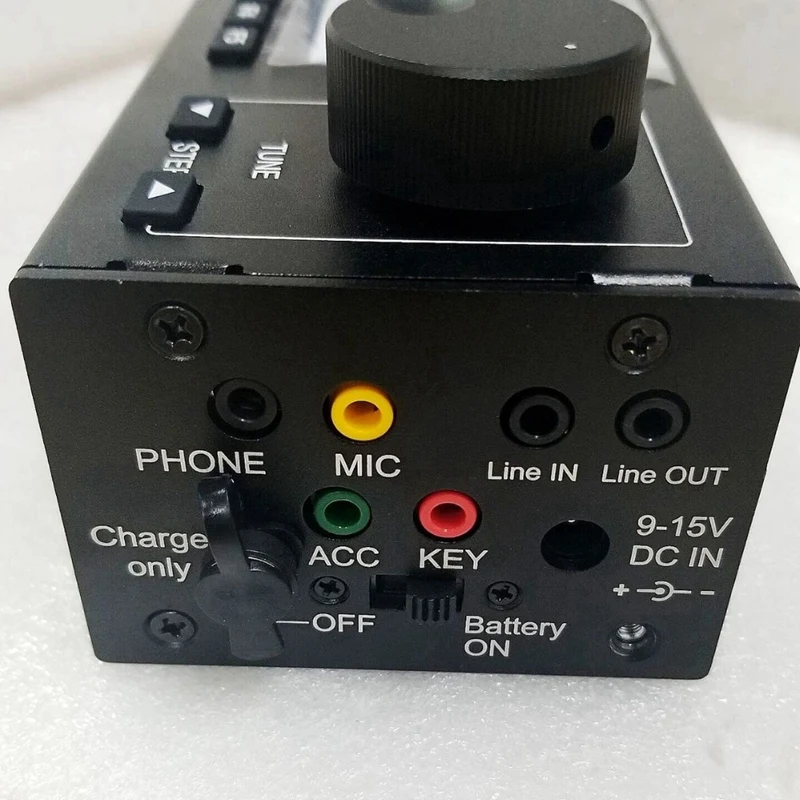

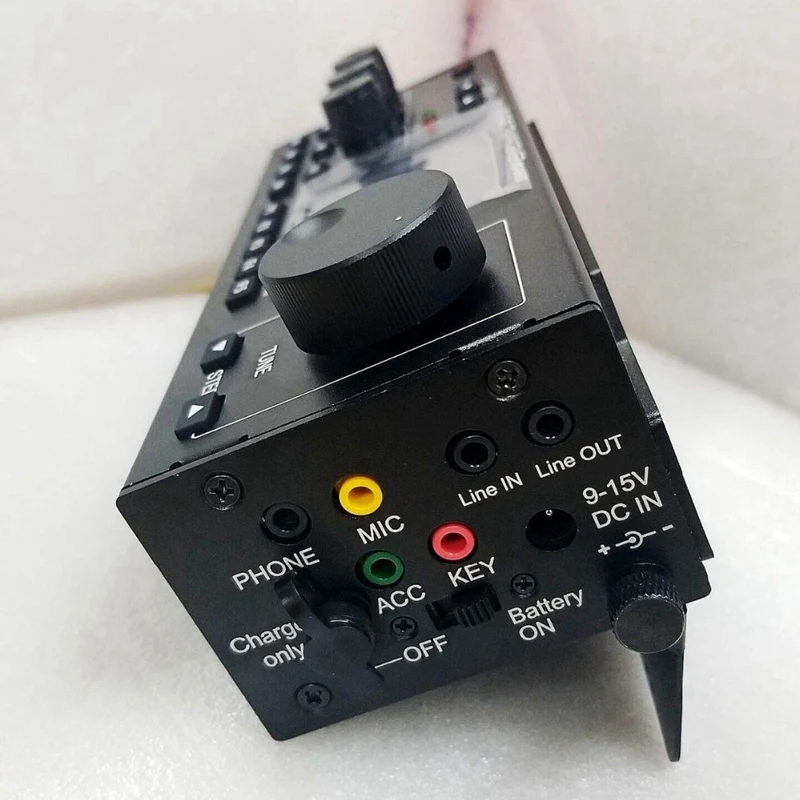

DC IN:9-13V Max:3A
Output POWER:less than or equal to 10W
Transmit: 160,80,60,40,30,20,17,15,12 and 10 meter amateur bands. Receive: 3.5-30 MHz nominal including general coverage,0.8-32 MHz at reduced specifications.
MODE:CW,LSB,USB,AM,FM(N,W),SAM,FreeDV
Bandwidth:300Hz-10Khz Adj
SWR:Display 1-5
Better than -108 dBm (0.89uV) in a 2.3 kHz bandwidth
Better than -120 dBm (0.22uV) in a 300 Hz bandwidth
Enclosure Design: Removable
Because this is a software-defined radio and due to ongoing modifications/improvements of the software and hardware,the specifications continue to improve.

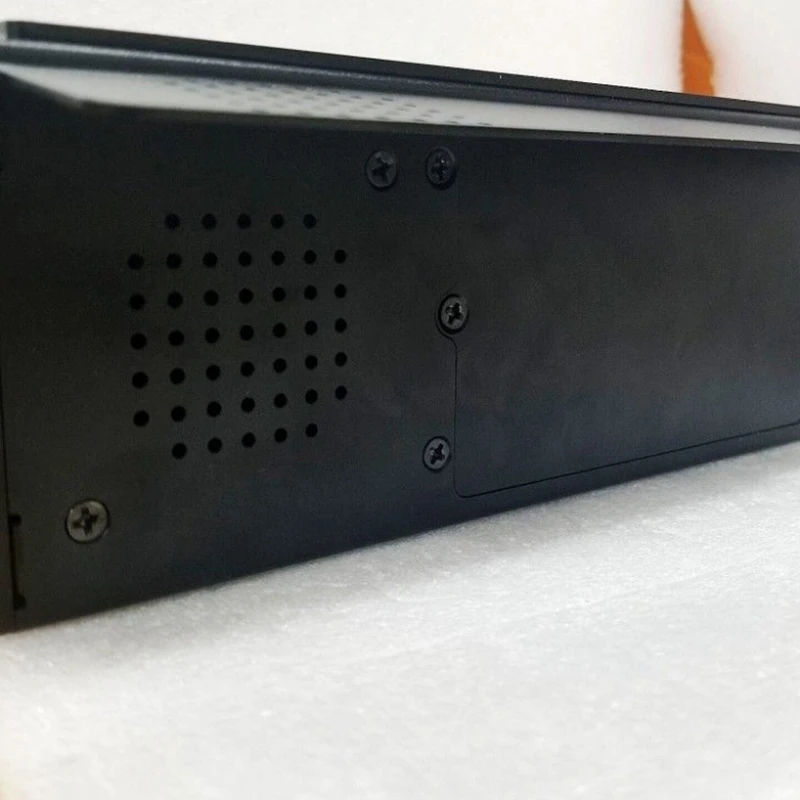

Material:metal
Size:22x8x6.5mm
Package Contents:

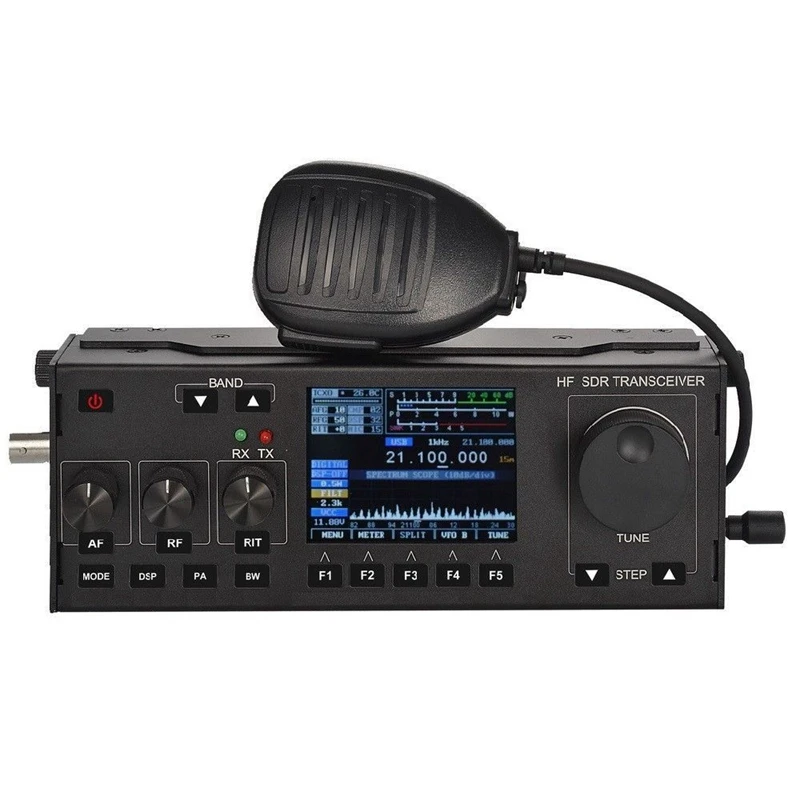

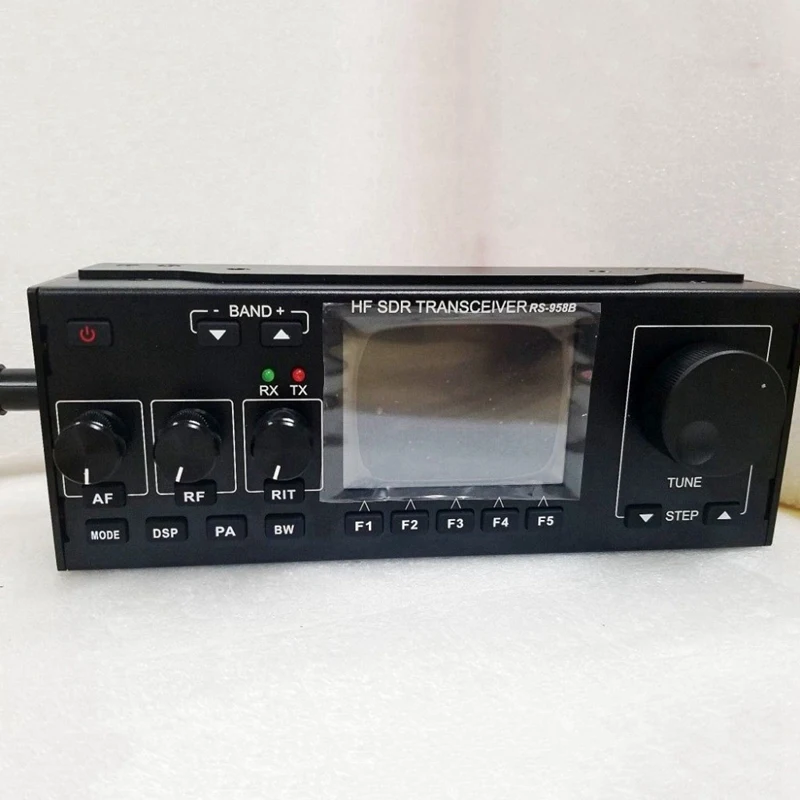

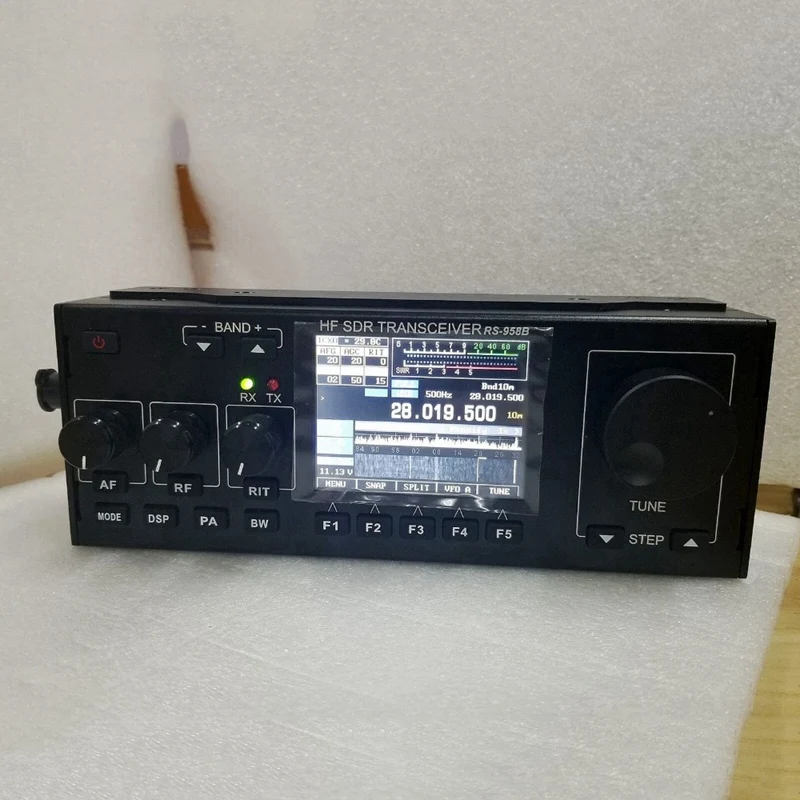

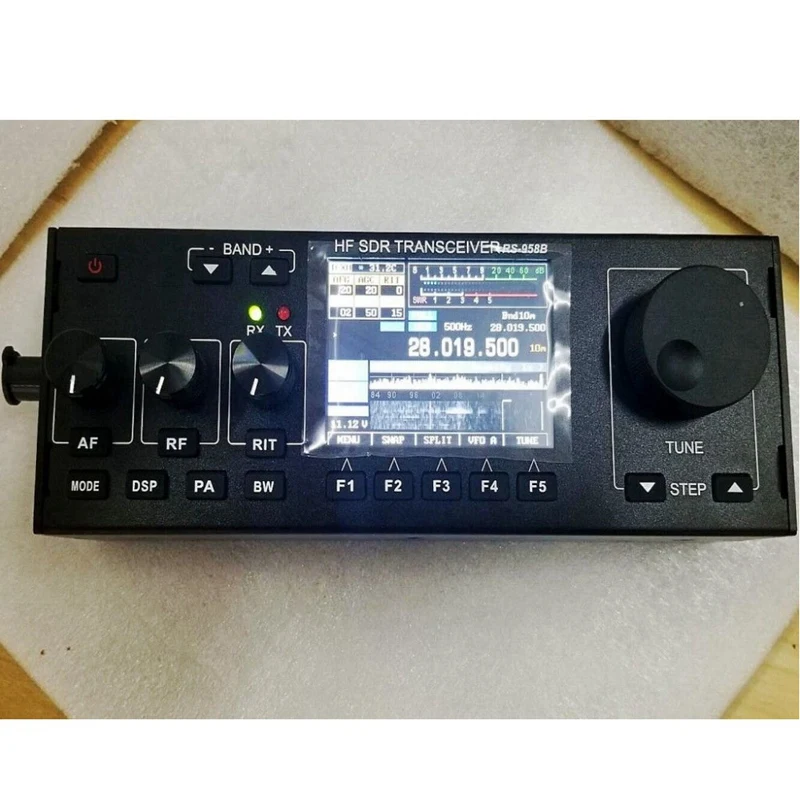

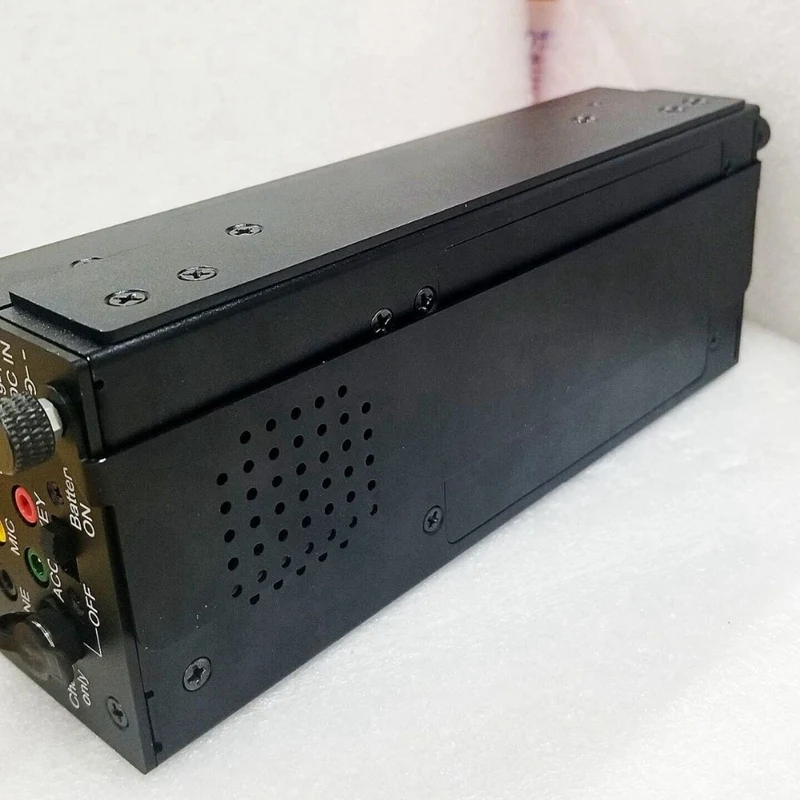

1* RS-958B HF SDR Transceiver
1* PL-958B DC power cord
1* HM-958 handheld Micro- phone
1* wrench
1* BNC to SO239 converter
1* 110-240v to 12.6V power supply (without power plug)
1* English manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
