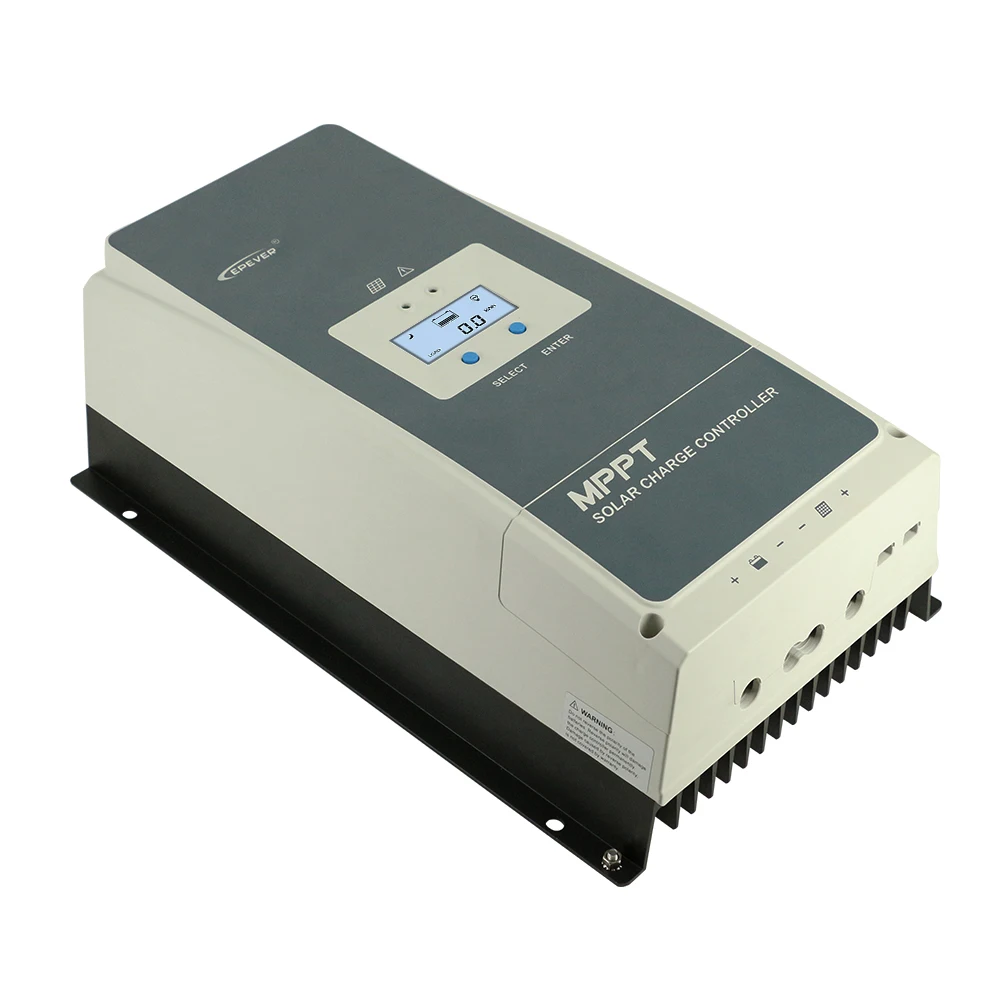

Tracer AN series controller, based on multiphase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core processor architecture and common negative design, has the features of high response speed, high reliability, and high industrial standard. MSRT can guarantee very high conversion efficiency in any charge power, which sharply improves the energy efficiency of solar system; Advanced MPPT control algorithm minimize the maximum power point loss rate and loss time, to ensure the tracking efficiency, corresponding speed as well as high conversion efficiency under high or low power, so that inany situation, Tracer AN products can rapidly track the maximum power point(MPP) of PV array to obtain the maximum energy of the panel. The limitation function of the charging power and current, and automatic power reduction function fully ensure the stability when works with oversize PV modules and operate under high temperature environment.

With the adaptive three-stage charging mode based on digital control circuit, Tracer AN series controllers can effectively prolong the life-cycle of battery and significantly improve the system performance. The load, utility or generator auto-control relays make it easy to compose the hybrid power system. All-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection, effectively ensure the safer and more reliable operation of the solar system for a longer service time. The isolated RS485 interface with standard MODBUS communication protocol and 5V power supply makes it easy for customer to expand the application, it support up to 8 charging in parallel to expand system and meet with different monitoring requirements, so that can be widely used for various applications, e.g. solar RV, household system and field monitoring, etc.

CE certification(LVD EN/IEC62109,EMC EN61000-6-1/3)

High quality & low failure rate components of ST and Infineon to ensure the product’s life

Advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5%

Maximum DC/DC transfer efficiency is as high as 98.6% ,full load efficiency is up to 98%

Advanced MPPT control algorithm will minimize the MPP loss rate and loss time

The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP

The wider range of MPP operating voltage.

Auto control system to limit the charging power & current go over the rated value.

Support 4 charging options: Sealed, Gel, Flooded and User.

Battery temperature compensation function

Real-time energy recording and statistical function

Automatic over-temperature power reduction function

Hundred percent full load operation in working environment temperature range within charging & discharging

Support up to 8 units in parallel to expand system

Load relay control external load switch signal to realize diversified load work modes

The first and the second disconnection of load control, contain two relay’s contact.

Auto-control of utility and generator relay design

Utility or generator auto-control relays make it easy to compose the hybrid power system

The remote temperature and the voltage sensor design will collect accurate data of battery temperature and voltage

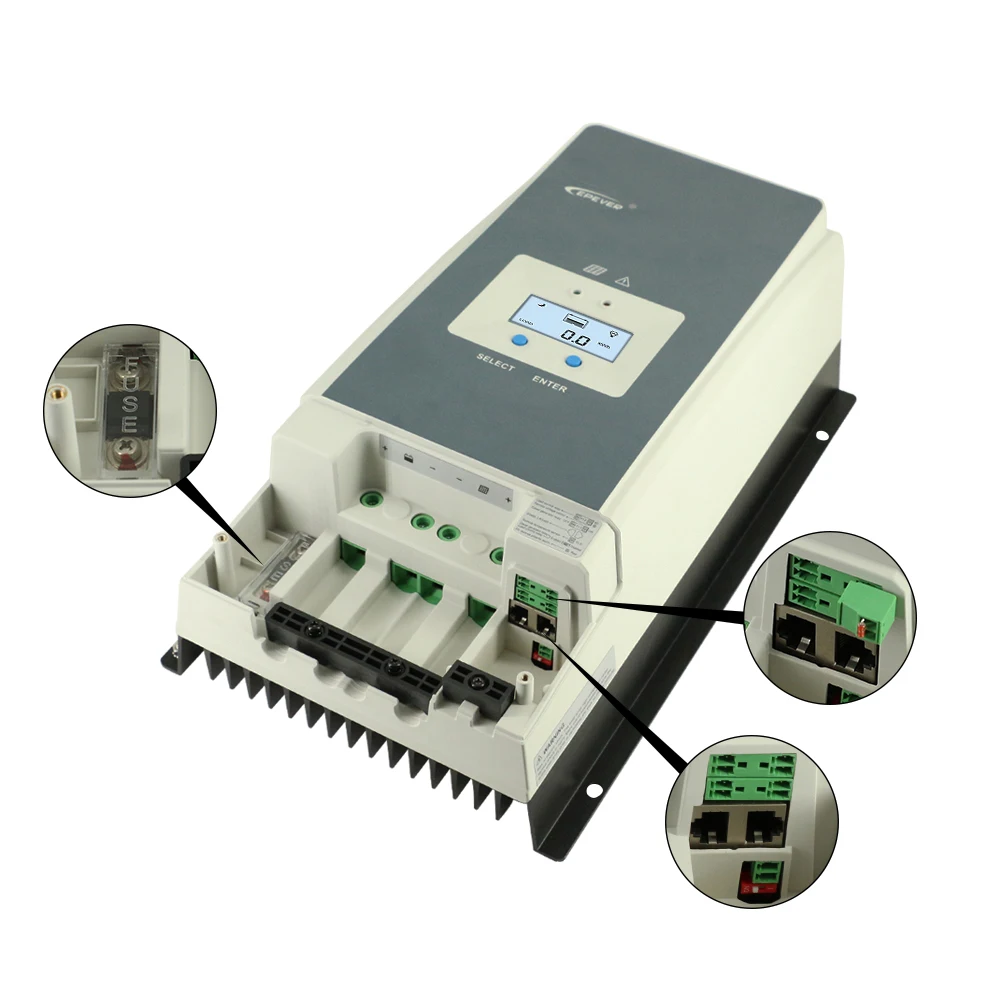

Isolated RS485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol

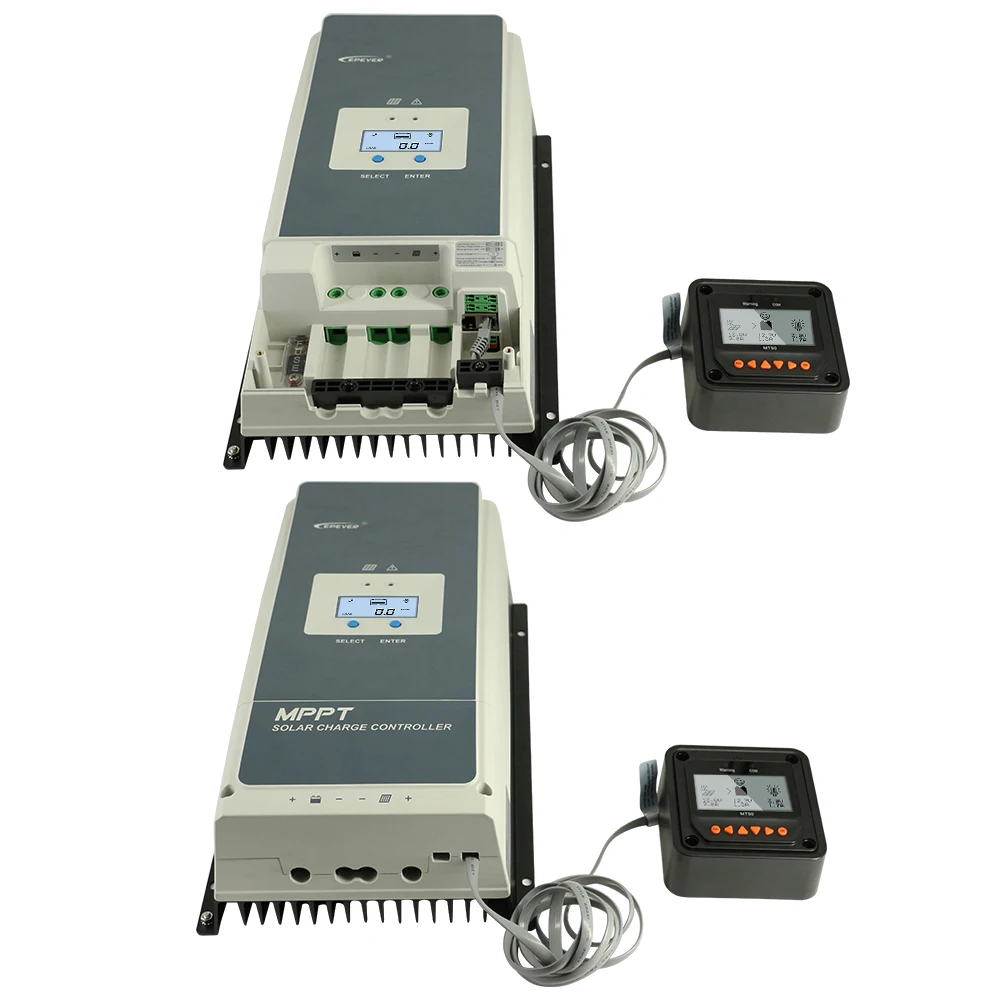

To monitor or set the parameters by using the phone Apps or PC software.

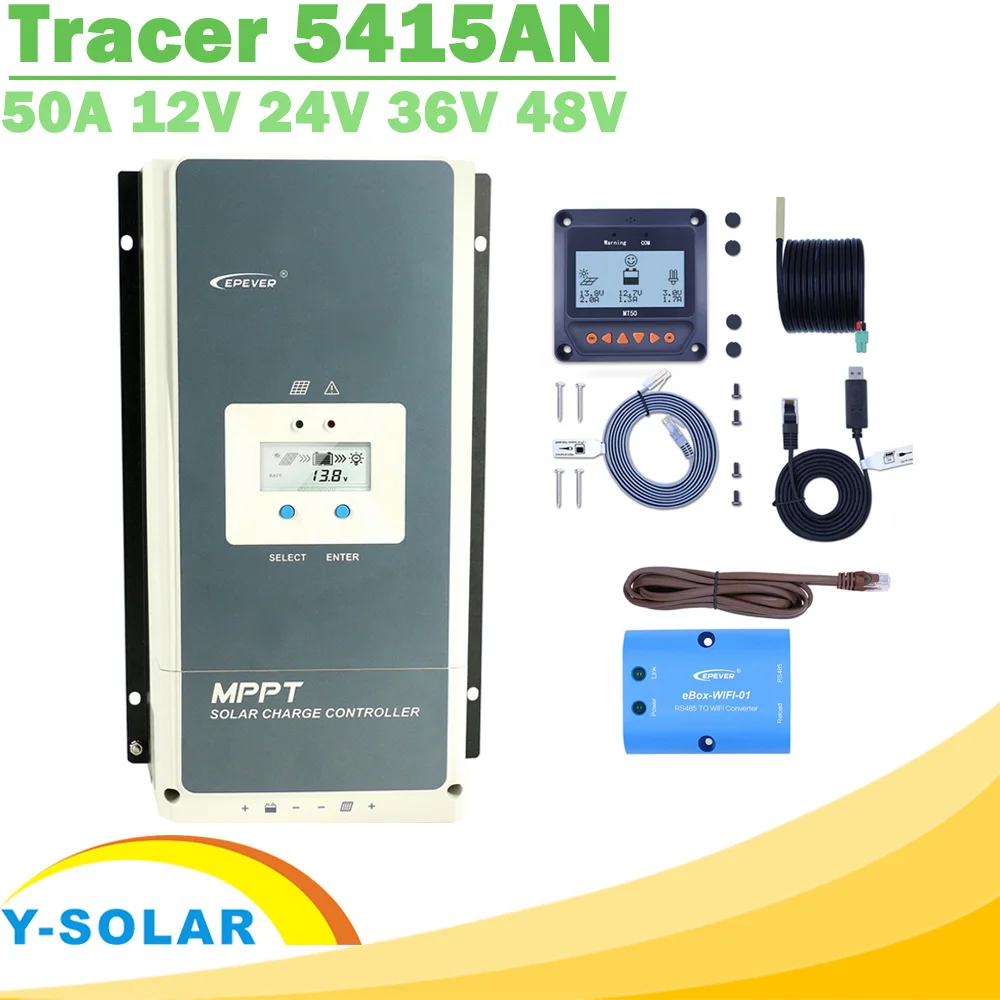

1 PCS MPPT Solar Controller 5415AN

1 PCS English User Manual

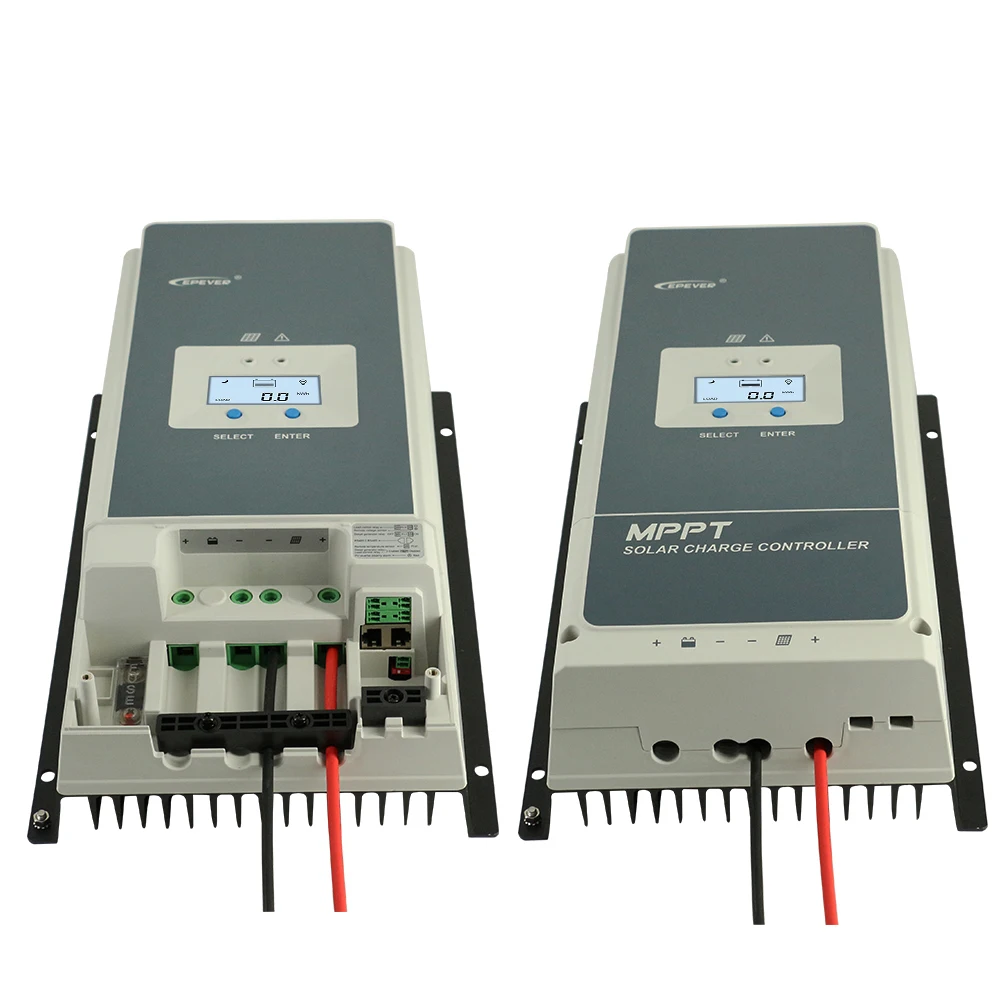

One controller：

Multiple controllers:

Item

Tracer5415AN

Nominal System Voltage

12/24/36/48VDC Auto

Battery Input Voltage Range

8V~68V

Battery Type

Sealed(Default)/Gel/Flooded/User

Battery fuse

80A/58V

Rated charge current

625W/12V 1250W/24V 1875W/36V 2500W/48V

Max. PV open circuit voltage

150V

MPP Voltage Range

(Battery Voltage +2V)~108V

Tracking efficiency

≥99.5%

Max. conversion efficiency

98.3%

Full load efficiency

97.8%

Temperature compensate coefficient

－3mV/°C/2V(Default)

Self-consumption

98mA/12V;60mA/24V;50mA/36V;46mA/48V

Grounding

Common negative grounding

Relay

Rated Value:5A/30VDC; Max. Value:0.5A/60VDC

RS485 interface

RS485(RJ45)

LCD backlight time

Default:60S,Range:0～999S(0S:the backlight is ON all the time)

Ambient temperature range

-25°C~+60°C(Derate above 45°C)

LCD temperature range

-20°C~+70°C

Storage temperature range

-30°C~+85°C

Relative humidity range

5% to 95% (N.C.)

Enclosure

IP20

Pollution degree

PD2

Dimension

261×216×119mm

Mounting dimension

180×204mm

Mounting hole size

Φ7

Terminal

6AWG/16mm 2

Recommended cable

6AWG/16mm 2

Safety

EN/IEC62109-1

EMC

EN61000-6-3/EN61000-6-1

FCC

47 CFR Part 15, Subpart B

ROHS

IEC62321-3-1
