100Pcs 10P 3.81mm Pitch Double Deck Right Angle Pin Male Pluggable PCB Electrical Screw Terminal Block 2x5P | Обустройство дома

3.81mm Pitch Terminal

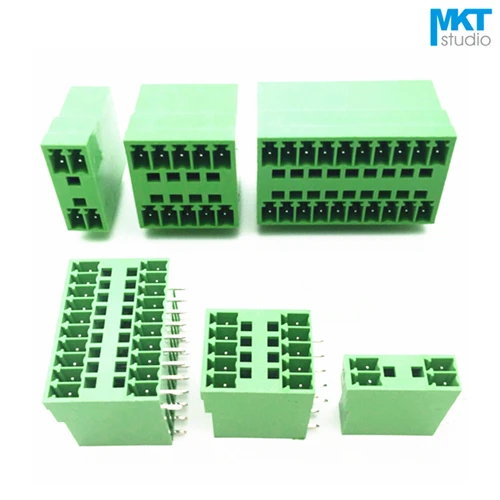

2x5P 3.81mm Pitch Double-Deck Right Angle Pin Male Pluggable PCB Electrical Screw Terminal Block

Feature

1.2x5 = 10Pins;
2.Male;
3.3.81mm Pitch;
4."Cover" in both sides;
5.Right Angle Bend;
6.Double-Deck;

Material

1.Pins:  Brass with tin-plating;

2.Plastic: PA66 UL94V-0;

Mechanical

1.Temperature:   -40°c ~ 130°c;

2.Transient Temperature:  +250°c for 5 seconds;

Electrical

1.Rated Voltage: 300V;

2.Rated Current: 8A;

3.Contact Resistance: 20mΩ;

4.Insulation Resistance:  5000MΩ \ 1000V;

5.Withstand Voltage: AC2000V \ 1Min;
