Newly MB506 Module 50MHz-2.4GHz Prescaler Module LNA 50MHz-2.4GHz High Frequency 64 128 256 Highly Frequency Divider
OOTDTY

Features: 100% brand new and high quality

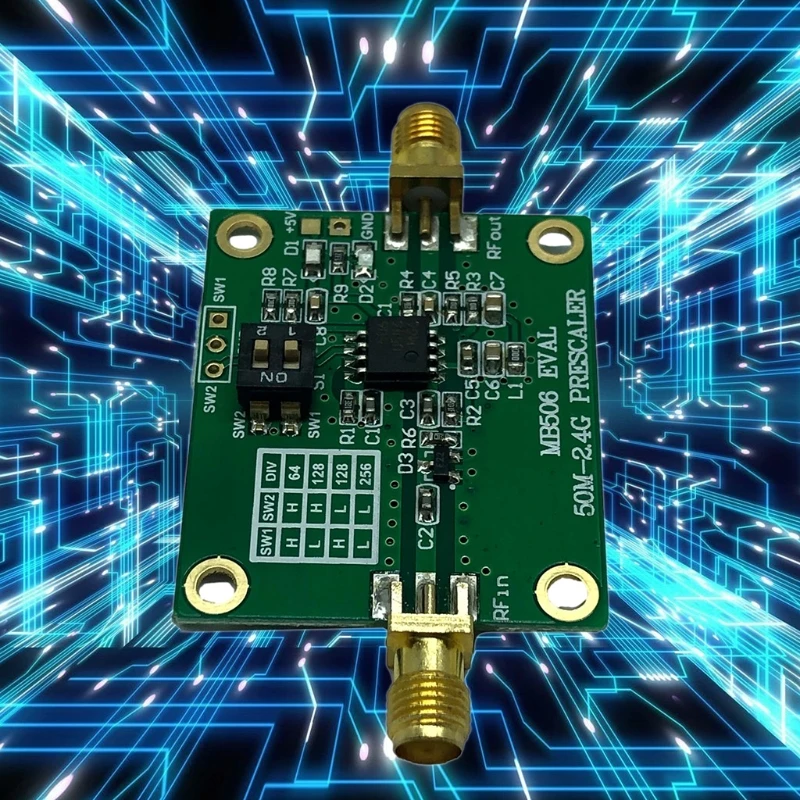

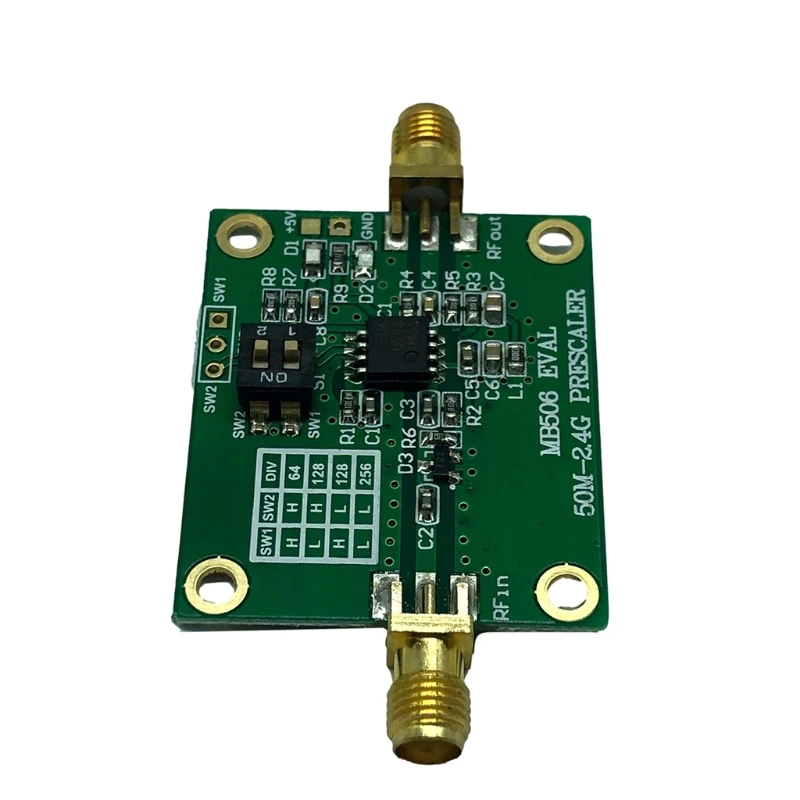

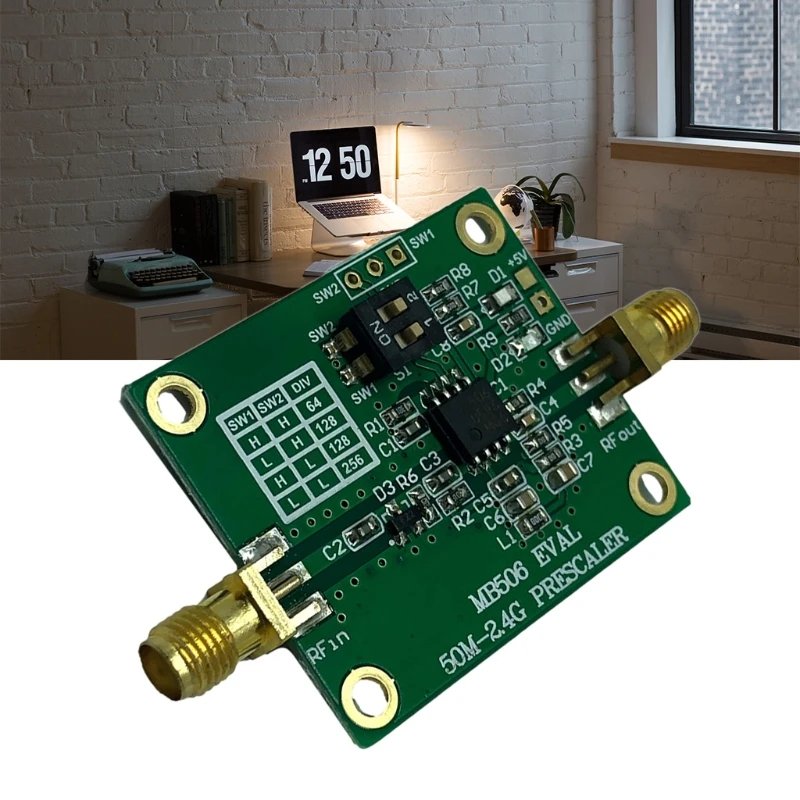

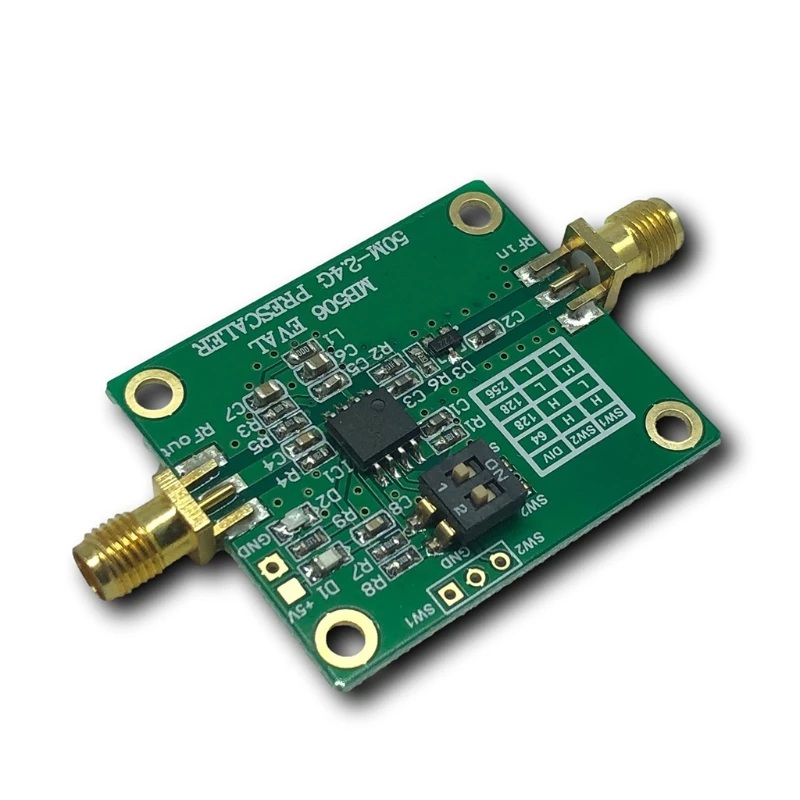

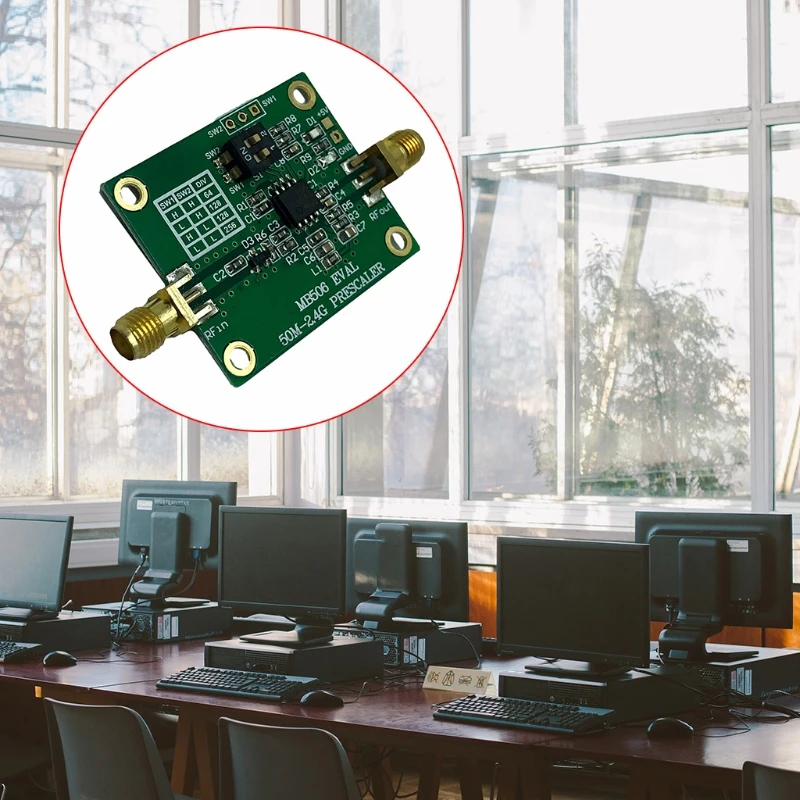

MB506 is a high frequency prescaler with a frequency up to 2.4GHz.
The impedance change is lower, which can get better classification performance and improve the dynamic range.
It divides the input frequency by the modulus of 128 or 256, and the output level is 1.6V at the peak-to-peak value at the ECL level.
The divider ratio can realize 64, 128 and 256 divider by two-digit dialing switch or external interface.
Complete phase locked loop synthesizer circuit with MB87006A, phase locked loop synthesizer IC.

Specification: Material: Metal
Frequency: 50m-2.4g
Power Consumption: 90mw
Operating Temperature: -40 °c to 85 °c
Output Amplitude: Vout = 1.6vp-p
Input Frequency: 30m-3g, Typical: 50mhz-2.4ghz
Input Signal Amplitude: -16dbm-5.5dbm (the Higher the Frequency, the Higher the Input Requirement)
Single Power Supply: 4.5v - 5.5v, Typical: 5v
Input and Output Interface: Sma Female, Input Impedance 50 Ohms

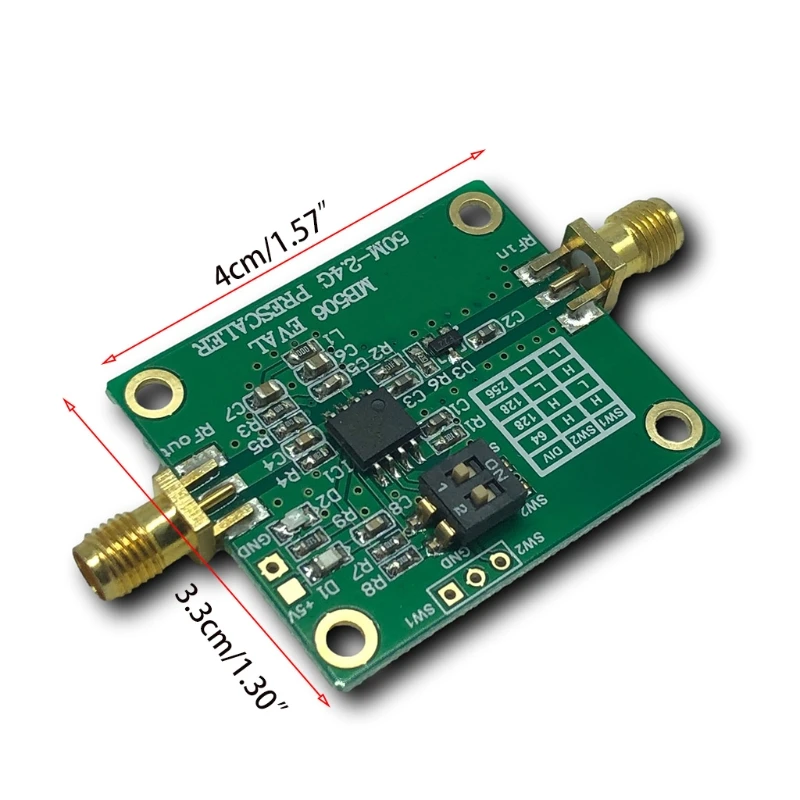

Size: Approx. 6.7 X 3.3 X 0.5cm / 2.64 X 1.3 X 0.2in
Weight: 10g

Package Includes: 1 X 2.4GHz MB506 Module Prescaler 64 128 256 Frequency Divider
