RF Demo Kit for NanoVNA VNA RF Test Board Vector Network Test Filter / Attenuator Network Analyzers Electrical Instruments

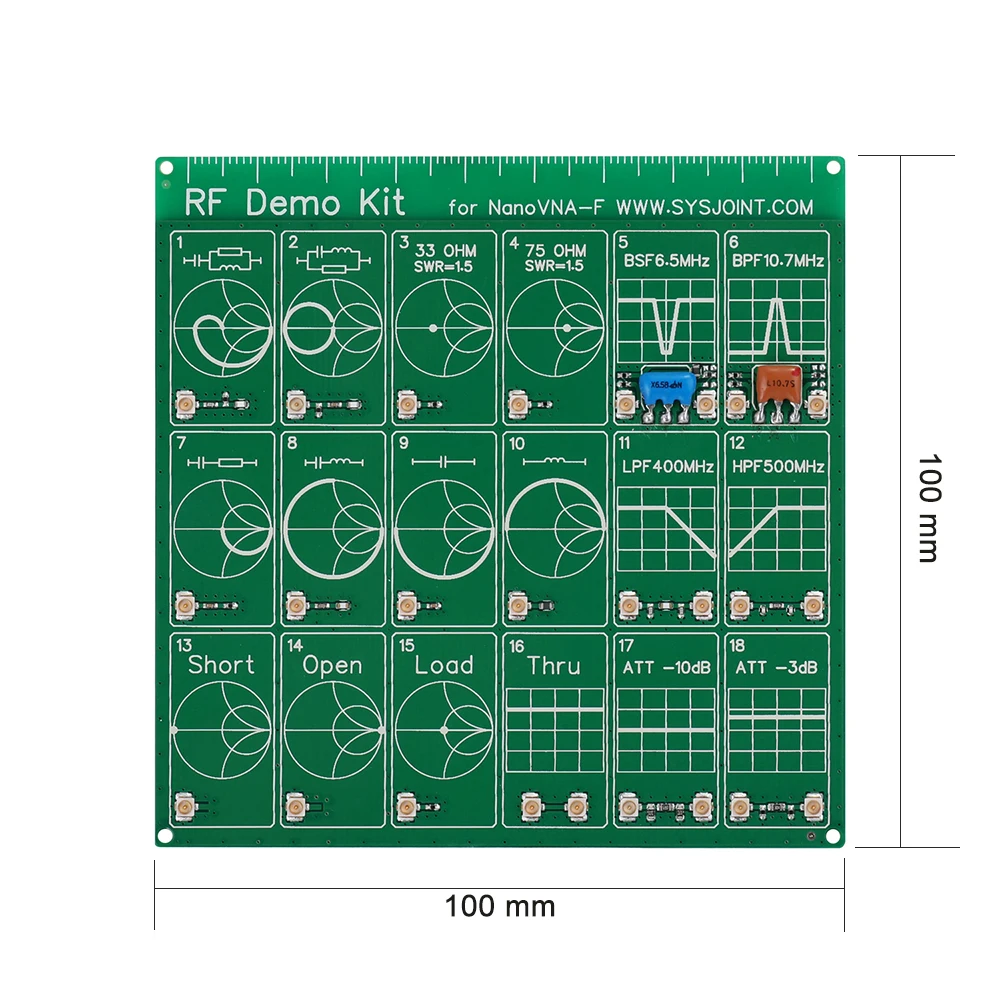

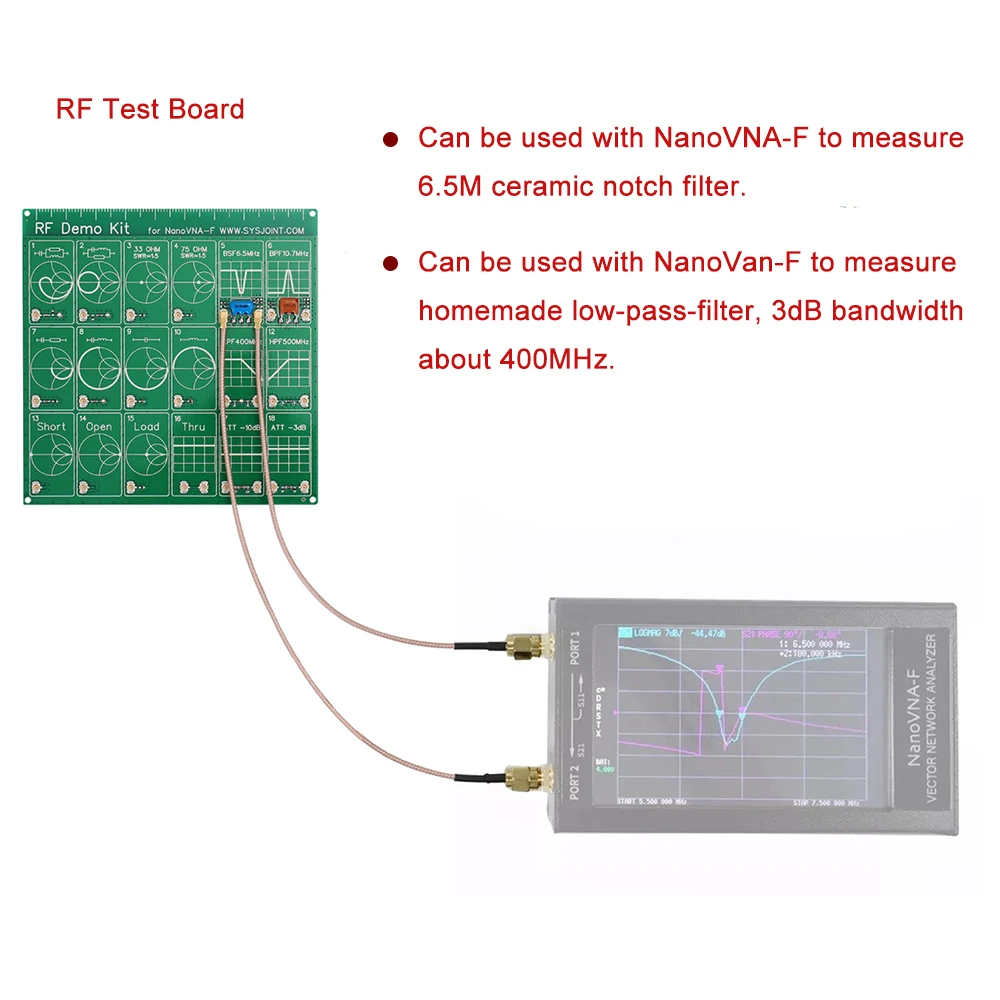

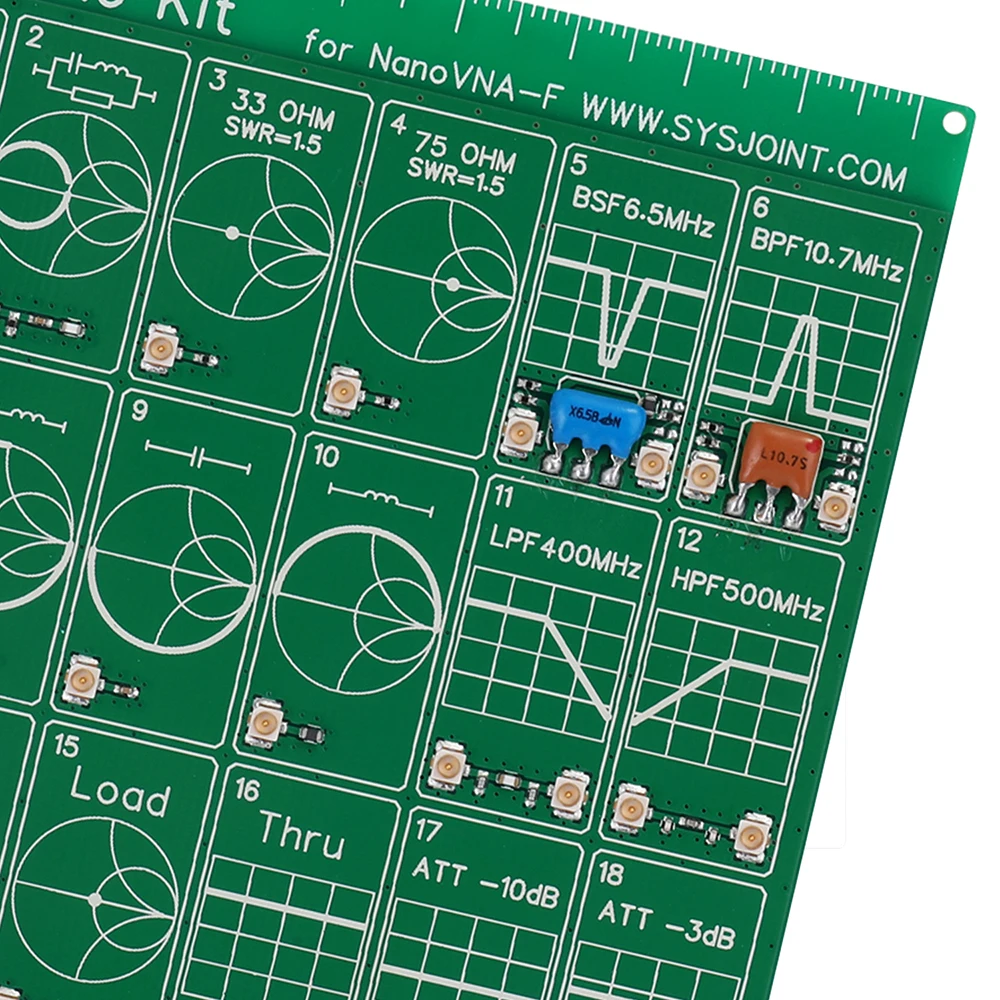

- PCB board in size of 10 x 10cm - Vector network analyzer learner tool - RLC series and parallel circuit 1 - RLC series and parallel circuit 2 - 33 ohm resistance, SWR=1.5 - 75 ohm resistance, SWR=1.5 - BSF ceramic notch filter, center frequency 6.5MHz - BPF ceramic filter, centre frequency 10.7MHz - RC series circuit - LC series circuit - Capacitor - Inductance - Homemade low-pass filter, 3dB bandwidth 400MHz - Homemade high-pass filter, 3dB bandwidth 500MHz - Short-circuit calibration circuit - Open-circuit calibration circuit - 50 ohm load calibration circuit - Straight-through - 10dB attenuation circuit - 3dB attenuation circuit - Each set of functional circuits Applications: - Can be used with NanoVNA-F to measure 6.5M ceramic notch filter - Can be used wtih NanoVNA-F to measure homemade low-pass-filter, 3dB bandwidth about 400MHz

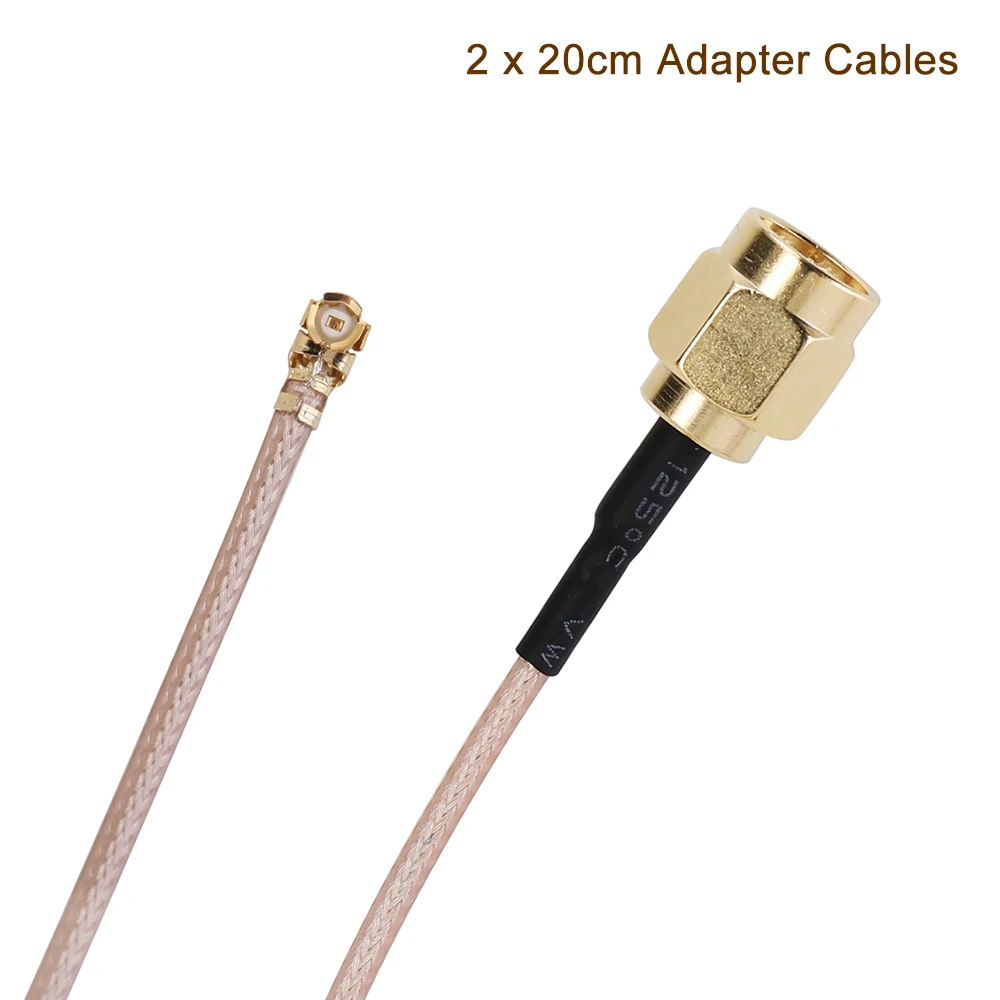

1 x PCB RF Tester Board 2 x 20cm Adapter Cables(SMA Male to IPEX Female)

Q1: Can i have it with RG174,RG178 cable?

A: Yes, we can customize most types of cable for you, such as RG316,RG174,RG178 IPEX,1.13 IPEX,RG58,RG142,LMR195,LMR240,LMR400/7D-FB,LMR300/5D-FB,RG179,RG141,RG402,RG405,RG223, etc.

Q2: I need the cable 200cm, can you make it?

A: Yes,we can customized any length for you.

Q3: Can the connector make with another type of connectors?

A: Yes. We can customize connectors for you, such as SMA serials ,MCX, Fakra, TS9, CRC9 and so on.
